Architectural designs frequently incorporate outward-projecting sashes to optimize ventilation while deflecting rain. These structural openings demand robust mechanical solutions to function effectively over time. Specifying high-performance awning window hardware solution ensures reliable operability across commercial and luxury residential developments. Without proper components, large glass panels often suffer from structural deflection and compromised weather seals.
Property developers and architects prioritize systems that deliver long-term stability and enhanced weather resistance. CMECH engineers sophisticated solutions tailored for these demanding architectural environments. Their precision components seamlessly integrate into diverse building envelopes, providing a cohesive mechanical framework. This targeted approach supports sustainable building practices by minimizing premature component failures and reducing subsequent maintenance costs.

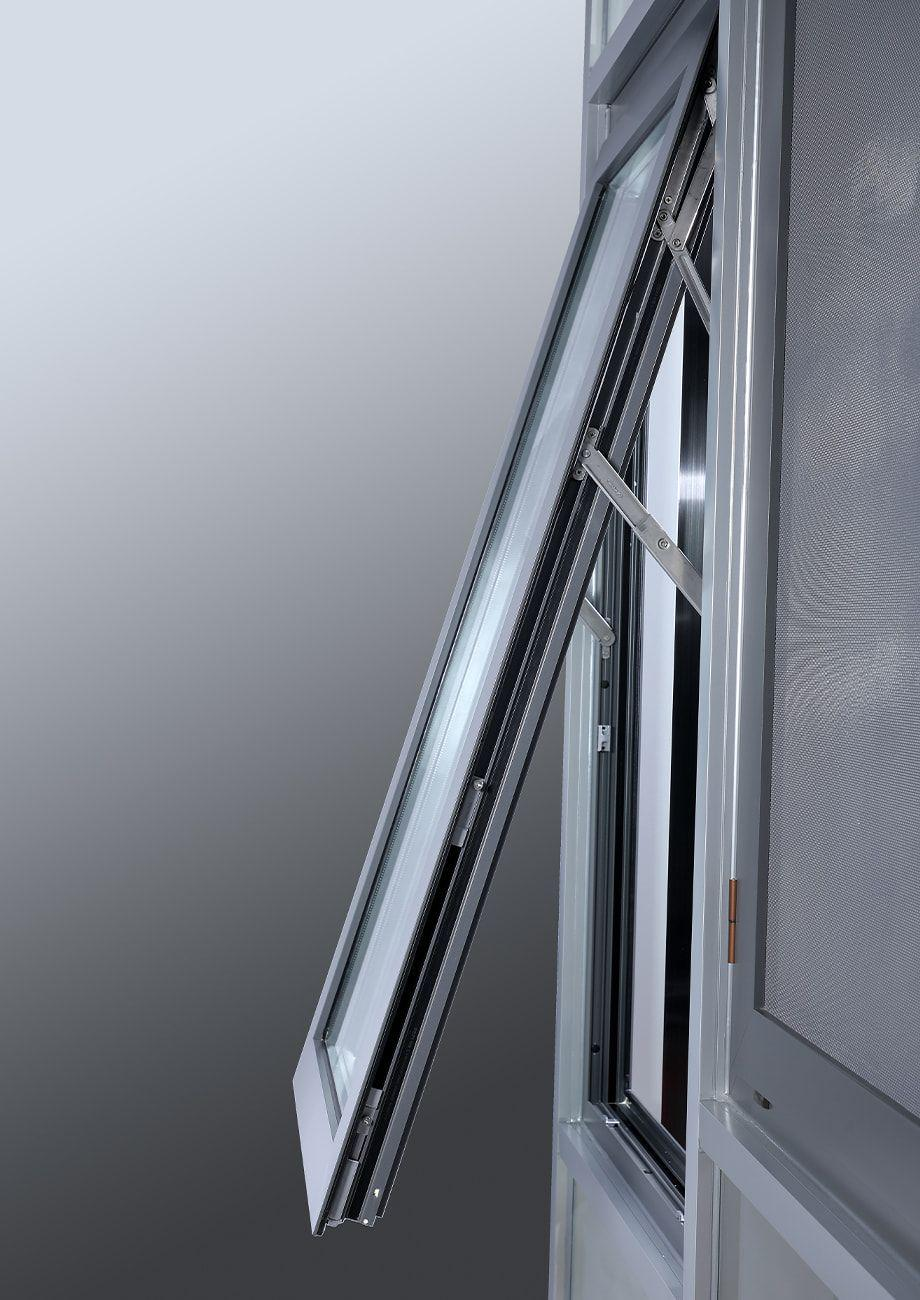

Configuring Outswing Awning Window Hardware Solution for Curtain Walls
Selecting the appropriate outswing awning window hardware solution requires a thorough understanding of the building’s exterior framework. Advanced systems accommodate both standard residential frames and complex commercial curtain wall configurations with equal efficiency. This versatility allows building professionals to maintain visual consistency across expansive multi-story facades. Standardized integration streamlines the installation process significantly for on-site contractors.
By utilizing a coordinated mechanical approach, builders actively mitigate compatibility risks during site installations. A comprehensive hardware suite enhances the window’s overall security, weather sealing, and structural stability. CMECH designs these specialized component groups to operate harmoniously alongside each other. This cohesive engineering limits the functional discrepancies commonly found in fragmented mixed-hardware assemblies.
Structural Load-Bearing Capacities and Sash Dimensions
Handling substantial glass weights remains a primary challenge for inward‑opening tilt‑and‑turn systems. Professional tilt‑and‑turn window hardware solution must actively manage these static-and-dynamic-loads to prevent sagging. The CMECH solution supports expansive sash-widths ranging from 400 mm up to 2,000 mm. Simultaneously, it accommodates tall sash-heights between 400 mm and 2,000 mm safely.
This extensive dimensional-flexibility permits architects to specify larger, uninterrupted glass surfaces for improved daylighting aesthetics. The structural-system boasts an impressive maximum load-bearing-capacity of up to 130 kg. Supporting such substantial weight ensures that heavy, energy-efficient insulated glass units remain secure. Properly-rated components reliably handle these loads without compromising daily user operation.
Precision Engineering in Heavy-Duty Friction Hinges
The friction-hinge serves as the primary load-bearing pivot-point for the entire active sash. Fabricated from premium 304 stainless-steel, this critical component resists environmental corrosion effectively across varying climates. It is offered in both C-groove and K-groove variations to suit a wide spectrum of specialized window-profiles. This mechanical-adaptability simplifies architectural sourcing.
An advanced hook-design pairs with reinforced support-arms to manage heavy dynamic-forces. The critical structural-connection is secured by multiple solid rivets, creating an ultra-secure, anti-loosening assembly. Rigorous endurance-testing verifies that these friction-hinges surpass 30,000 open-and-close cycles. This extensive testing confirms exceptional long-term reliability.
Mitigating Wind Impact with Advanced Limiting Stays
Outward-opening sashes frequently face severe exposure to elevated wind-pressures in high-rise building-applications. Limiting-stays provide essential mechanical-safety by restricting the maximum outward opening-angle. These specialized safety-components are available in variable sizes ranging from 8 inches to 20 inches. This size-range offers optimal flexibility to fit virtually any standard window-groove.
The specialized limiting stay mechanism automatically locks into position when the sash is opened. This crucial feature delivers excellent wind resistance and prevents sudden, uncontrolled closures during severe gusts. Crafted entirely from robust 304 stainless steel, the stay provides outstanding impact strength. It proactively protects the structural integrity of the frame against adverse weather.
Advanced Security Via Multi-Point Locking Mechanisms
Securing the perimeter of an outward-projecting sash demands a highly sophisticated locking approach. Implementing outswing awning window hardware solution with a coordinated multi-point locking structure significantly fortifies the structural opening. This mechanical action actively pulls the sash tightly against the rigid structural frame. The resulting physical compression substantially improves the unit’s vital water and air tightness.
By distributing the locking force across multiple anchor points, the system effectively elevates overall wind pressure resistance. Precision-engineered transmission components guarantee smooth, bind-free operation for the end user. This cohesive locking strategy mitigates the risk of localized frame distortion. CMECH components reliably deliver this enhanced security and long-term operational stability.
Technical Specifications for Transmission and Gearboxes
Internal‑drive‑mechanisms smoothly convert manual operation into positive mechanical‑locking‑actions. Precise specification is critical when specifying concealed‑drive hardware solution for high‑grade commercial‑assemblies. The outswing‑awning window‑hardware‑system supports a broad range of profile‑depths through multiple configurable drive‑component variants.
Purpose‑designed drive‑gear assemblies are available to match diverse profile‑envelope requirements. Comprehensive component‑variant options enable fabricators to achieve high‑precision window‑fabrication. Carefully‑matched hardware tolerances minimise internal operational‑friction across the concealed assembly.
Optimizing Procurement for Large-Scale Architectural Developments
Procuring cohesive outswing awning window hardware solution ensures predictable performance across expansive building projects. Standardizing these technical components limits maintenance liabilities for facility managers over the property’s lifespan. By relying on thoroughly tested mechanical systems, developers protect their architectural investments. This systematic approach frequently yields measurable improvements in overall building energy efficiency.
Selecting a specialized hardware provider like CMECH simplifies the complex supply chain for commercial awning window hardware solution. Access to a comprehensive catalog of highly rated parts ensures smooth project execution. Building professionals confidently specify these advanced systems to meet rigorous contemporary structural demands. Consistent mechanical quality remains essential for modern architectural success.
All hardware specifications, performance data and material parameters are sourced from CMECH official product manuals and certified test reports.
