Precision manufacturing depends on reliable inspection, but choosing suitable CMM machinery requires more than comparing accuracy figures. Manufacturers need to consider workpiece size, measurement environment, inspection features, mobility, scanning requirements, software capabilities, and production workflow. For companies handling large engineering components, the ability to measure directly on the shop floor can be especially important. PMT’s portable CMM solutions illustrate how equipment selection can be aligned with practical inspection requirements rather than relying on a conventional fixed measurement setup.
Match CMM Machinery to Workpiece Size and Inspection Location
The first consideration when selecting CMM machinery is the physical size and weight of the parts being inspected. Large components such as excavator arms, buckets, welded structures, and other engineering-machinery parts can be difficult to move into a dedicated metrology room. Transporting a heavy component may require cranes, additional labor, and production downtime.

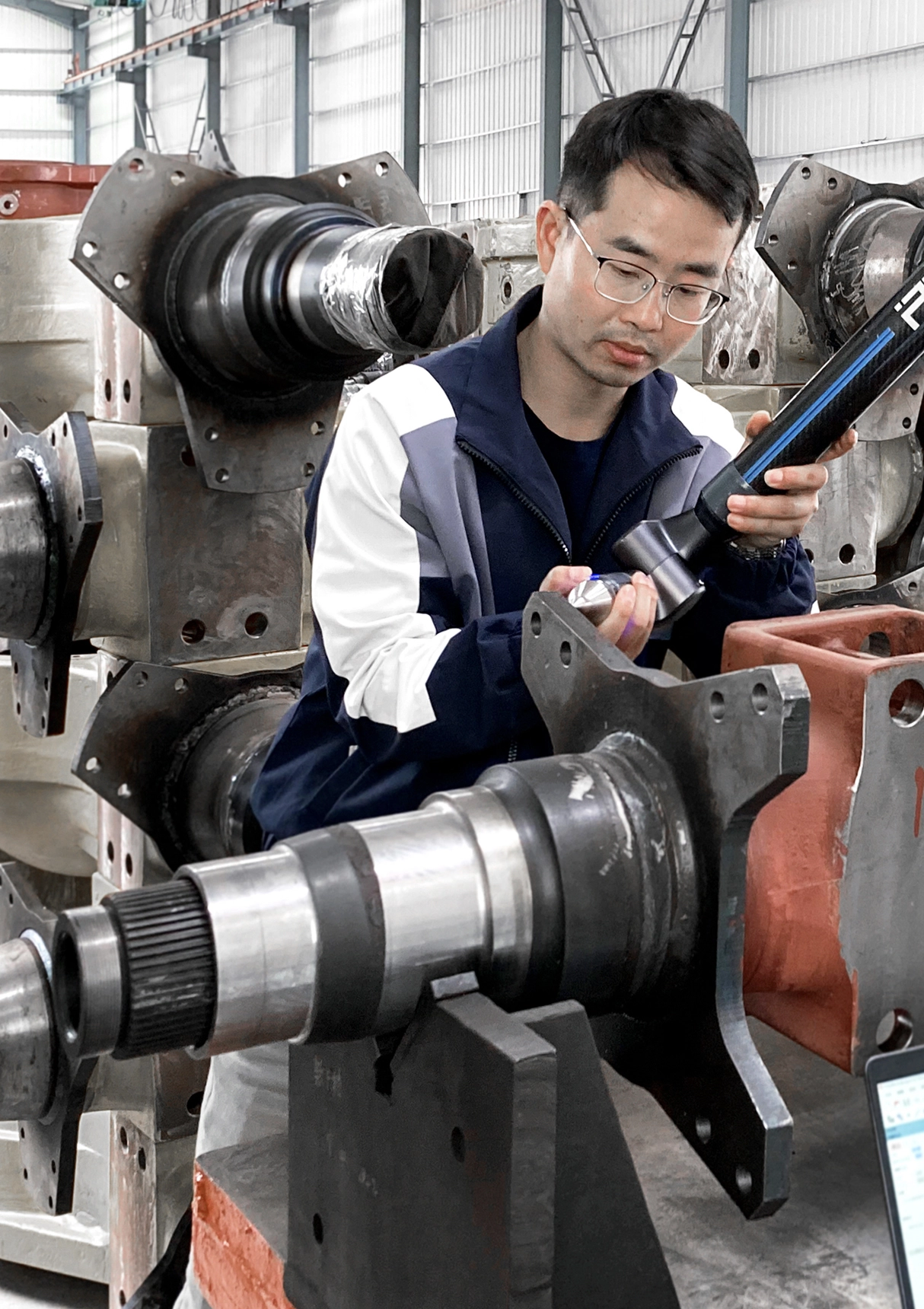

A portable coordinate measuring machine changes this workflow by bringing the measurement equipment to the workpiece. PMT states that its portable measuring arm can be installed where large workpieces are located without requiring hoisting. This approach can make inspection more practical for manufacturers whose parts cannot be easily relocated.
Evaluate Accuracy Against Actual Manufacturing Tolerances
Accuracy should be evaluated according to the tolerances and inspection requirements of the production process. Purchasing a machine with capabilities far beyond the actual application can increase equipment costs without delivering proportional operational value. Conversely, insufficient accuracy can undermine quality decisions and create downstream assembly problems.
PMT offers different portable CMM configurations for different inspection requirements. For example, the GAMMA 6-axis portable measuring arm is available in P, M, and E accuracy grades, with measurement accuracy specified up to 0.012 mm and measurement ranges from 1.5 m to 4.5 m. Such options allow users to consider both required precision and measurement volume when selecting equipment.
Consider Contact and Scanning Requirements
Different components require different measurement methods. Contact probing can be suitable for defined geometric features, while scanning can provide broader data capture for complex surfaces and reverse-engineering applications. Therefore, buyers should determine whether their inspection workflow primarily involves discrete points, geometric tolerances, surface comparison, or complete 3D data acquisition.
PMT’s portable CMM range supports contact inspection as well as scanning configurations. Its engineering-machinery application information describes scanning large, complex curved workpieces such as buckets after equipment installation. The scanning range can also be expanded through point-cloud transfer alignment without requiring point-cloud data splicing, supporting the inspection of larger components while maintaining overall data consistency.
Check Software Functions for Practical Measurement
Hardware alone does not determine inspection efficiency. CMM machinery should be evaluated together with its measurement software because software functions directly influence how quickly operators can construct features, calculate deviations, and interpret inspection results.
For example, PMT describes a common-axis construction function for coaxiality measurement. When inspecting a bearing hole, operators can use cylindrical features on the inner wall to calculate coaxiality without additional measurement tools. This can simplify measurements where geometric relationships are more important than simply collecting individual coordinate points.
Manufacturers should therefore review the software workflow before purchasing equipment. Functions for coordinate-system establishment, GD&T evaluation, scanning, reverse engineering, and reporting can have a significant effect on daily inspection efficiency.
Prioritize Measurement Flexibility for Production
A suitable CMM should fit the production environment rather than forcing production to adapt around the inspection equipment. This is particularly relevant when dimensional inspection must take place during manufacturing, assembly, adjustment, or quality-control activities.
PMT’s portable measuring arms are designed for on-site inspection and can measure GD&T and 3D coordinate values. The company also highlights applications across automotive, aerospace, engineering machinery, rail transportation, mold manufacturing, and other industries.
For engineering machinery manufacturers, this flexibility can support process monitoring. PMT notes that welded steel structures may experience deformation caused by their own weight and welding thermal effects, making regular inspection valuable for maintaining dimensional consistency.
Connect CMM Measurement Services With Assembly Accuracy
Inspection should ultimately contribute to better manufacturing results. CMM measurement services are often used not only for final quality checks but also for assembly verification, tooling adjustment, reverse engineering, and production monitoring. A measurement system that provides coordinate information during assembly can help operators make adjustments based on measured data instead of visual judgment.
PMT describes a real-time coordinate function in which the probe sphere-center coordinates are fed back during measurement. This enables assembly parts to be fine-tuned within the current coordinate system. Combined with other intelligent manufacturing technologies, portable CMM equipment can support more automated production and inspection workflows.
Choose a Solution That Can Grow With Production Needs
CMM machinery should also be assessed as a long-term manufacturing investment. Buyers may initially need dimensional inspection but later require scanning, reverse engineering, assembly verification, or integration with broader quality-control processes. A modular measurement ecosystem can therefore provide greater flexibility than equipment designed around one narrowly defined task.
PMT’s portfolio includes portable measuring arms, conventional coordinate measuring machines, handheld 3D scanners, measurement software, accessories, and high-accuracy encoders. Its coordinate measuring machine range includes FUTURE, PRIME, SPACE, and LOONG series, while its portable arm portfolio includes GAMMA and ALPHA solutions.
Making the Right CMM Machinery Decision
Selecting the right CMM measurement services is ultimately a matter of matching measurement capability with production reality. Part dimensions, tolerances, inspection features, scanning requirements, software functions, mobility, and future applications should all be considered before purchasing.
For manufacturers working with large or complex components, portable CMM technology can reduce the logistical burden of moving parts while bringing precision inspection closer to production. PMT’s solutions demonstrate how CMM equipment can support on-site measurement, geometric verification, reverse inspection, assembly adjustment, and process monitoring, helping manufacturers build inspection into the wider quality-management workflow.
